720P USB Camera Module Super Mini 45 Degree M7 Low Distortion Lens USB Camera Module for Opencv Raspberry Pi USB2.0 High Speed CCTV PC Camera Plug and Play for Windows Linux Mac OS Android
4.9 (130 items)
Limited Time SaleUntil the end
00
36
59
US$18.59 cheaper than the new price!!
Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Free cash-on-delivery fees for purchases over $99
See all stores
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used US$12.40
Product details
| Management number | 228848484 | Release Date | 2026/05/31 | List Price | US$12.40 | Model Number | 228848484 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

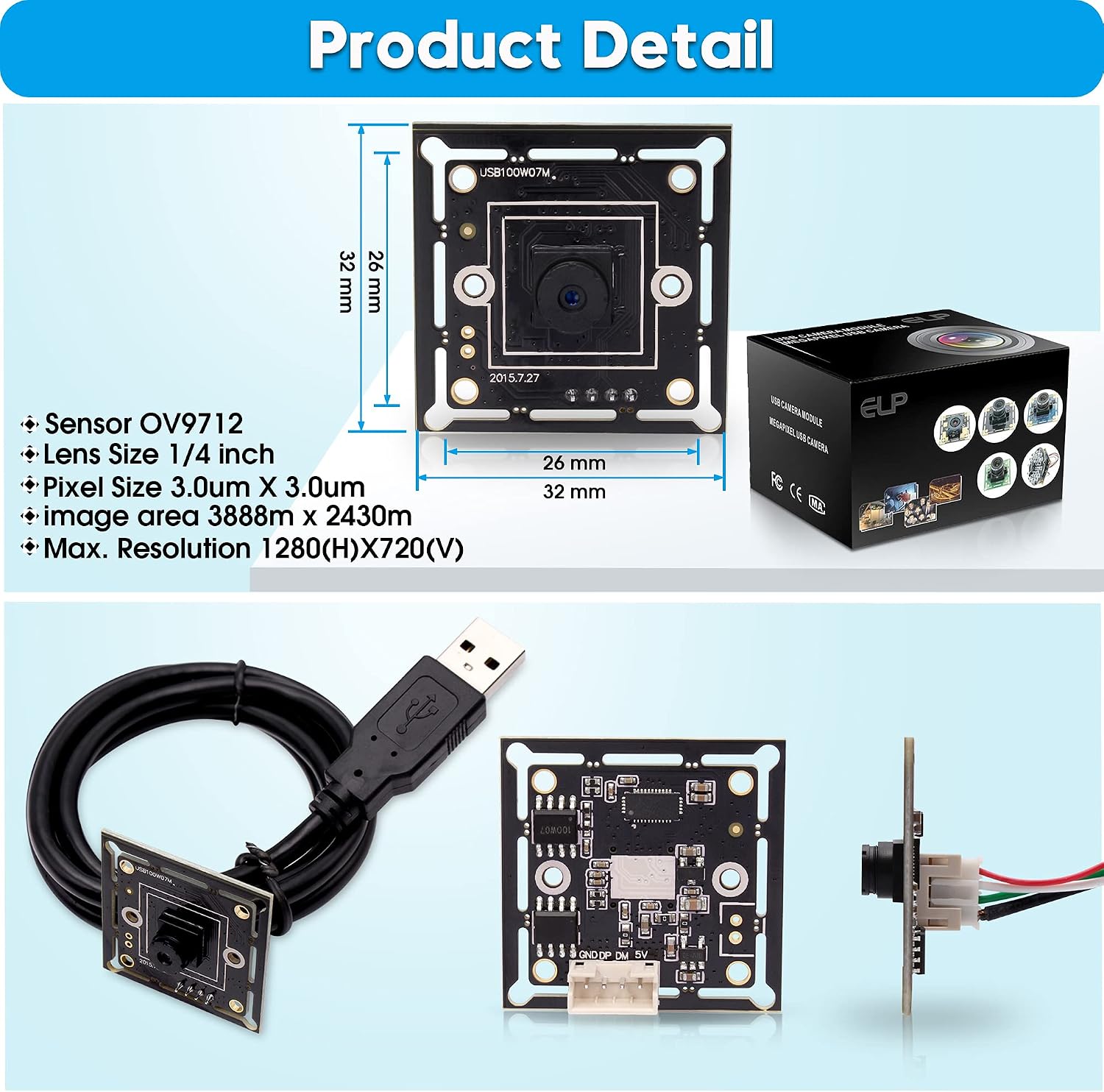

- 1 Megapixel USB camera module comes equipped with a 1/4" CMOS OV9712 image sensor for improved image performance. Its super small profile and thin configuration make it ideal for embedded applications. The USB 2.0 camera module comes with a 1-meter USB 2.0 cable. Board size/weight is 32X32mm (compatible with 26X26mm)/approx. 30g.

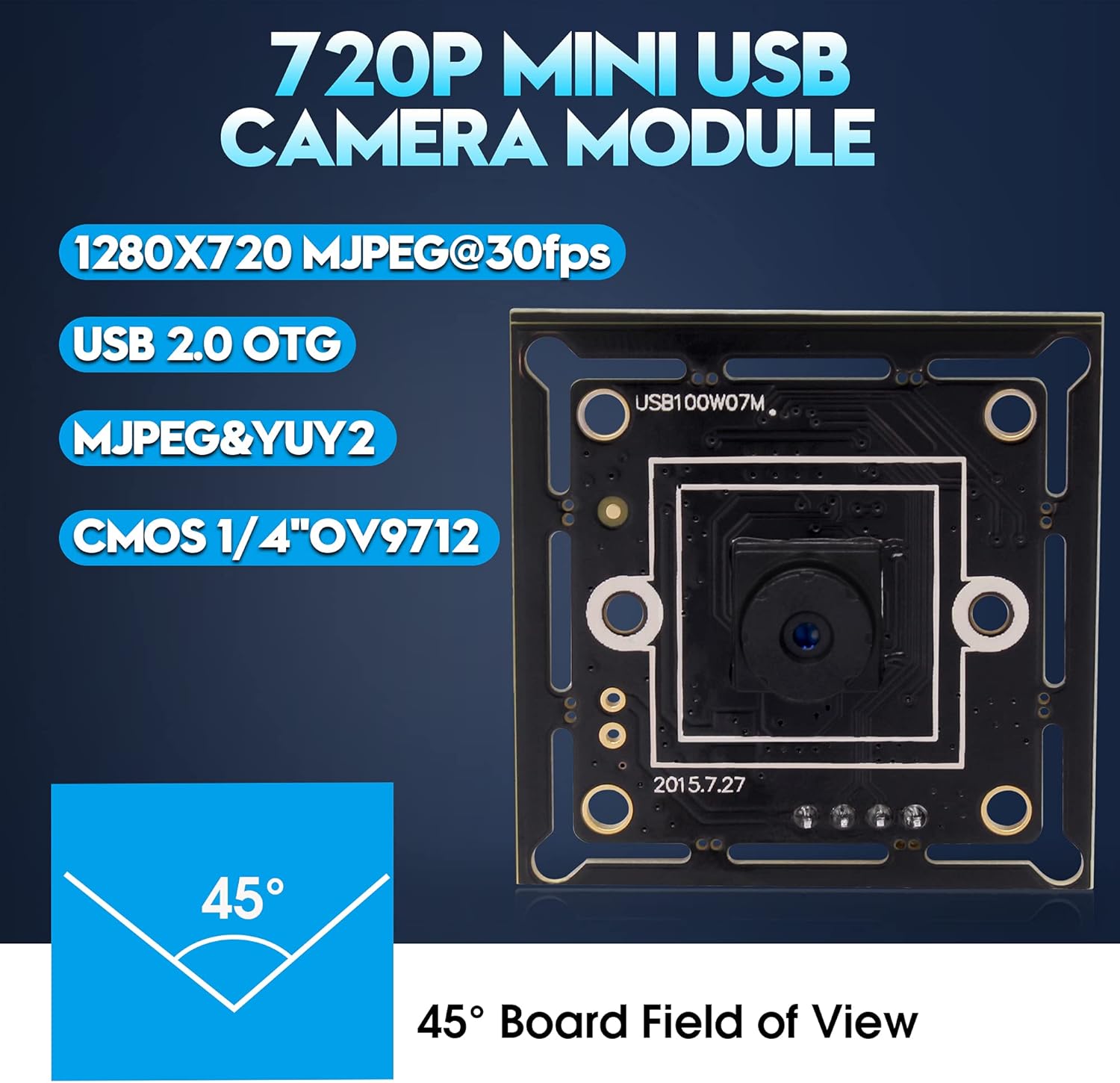

- M7 Lens 45 Degree Mini USB Camera: 1MP USB Camera Module with Ominivision CMOS 1/4" OV9712 Image Sensor. Standard M7 Mini Lens with a wide-angle view (D)60 (H)45 degrees.
- The 720p USB camera module comes with IR-cut filter@550nm for true-color images/videos (does not work with 850nm infrared illumination). Brightness, contrast, color saturation, sharpness, gamma, WB, and more are adjustable. The ultra-small profile and thin shape make the compact camera suitable for various application scenarios such as traffic monitoring, parking lots, entrance of parking lots, ATM machines, toll booths, etc.
- Operating System Support: The USB camera module is an ideal choice for many applications such as security systems, portable video systems, video phones, industrial machine monitoring, and toys. It supports USB 2.0 plug-and-play free drivers. Most operating systems: Win7/8/10, Linux, Mac OS, Android, Raspberry Pi, etc.
- Wide Application: The USB 720P camera module is an ideal choice for many applications such as security systems, portable video systems, video phones, industrial machine monitoring, and toys. It uses high-quality image sensors manufactured by OmniVision, which is one of the world leaders in the electronic field. The USB camera module is the ideal choice for device manufacturers, experimenters and hobbyists.
| ASIN | B09CTVHTN4 |
|---|---|
| Brand | IFWATER |
| Color | 45 Degree M7 Lens |
| Features | Max 1280X720@30fps HD 720P high resolution,high pixel technology for sharp image and accurate color reproduction. Mini 45degree M7 Lens,high quality lens,true and undistorted color image. USB2.0 high speed mini size 32x32/26x26mm for PC camera interface,super small outline and thin profile for embedded applications. |
| Lens Type | Wide Angle |
| Focus Type | Fixed Focus |
| Model Name | 720P usb camera module, USB2.0 high speed mini size 32x32/26x26mm for PC camera interface,CMOS OV9712 sensor 720p 30fps usb camera module for high quality image and low power consumption – ideal for portable equipment. |
| Style Name | USB Camera Module 720P Super Mini Embedded Webcam Board with 45degree M7 Lens Megapixel HD OV9712 Camera Module USB for Laptop USB2.0 UVC Video PC Camera Module,with 3.3ft/1m Cable for Computer |
| File Format | M-JPEG |
| Form Factor | Compact |
| Item Weight | 30 Grams |
| Screen Size | 2 Inches |
| Sensor Type | CMOS |
| Manufacturer | IFWATER |
| Model Number | IF-USB100W07M-MHV45 |
| BuiltIn Media | 1x usb camera module, 1x using manual, 1x package box |
| Viewing Angle | 100 Degrees |
| Camcorder Type | Webcam |
| Item Type Name | 1MP usb webcam usb with camera usb camera module |
| Shooting Modes | rolling shutter |
| Log Gamma Curve | [POSSIBLE] Yes |
| Antenna Location | Used for all kinds of machine as below: machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external |
| Operating System | Win7/8/10, Linux, Mac, Wince and Android with UVC |
| Video Resolution | 720p |
| Flash Memory Type | SD |
| Photo Sensor Size | 1/4-inch |
| Compatible Devices | Win7/8/10, Linux, Mac OS, Android, Raspberry Pi, etc |
| Image Aspect Ratio | 4:3 |
| Maximum Focal Length | 32 Millimeters |
| Video Capture Format | MJPEG |
| Wireless Compability | Infrared |
| Exposure Control Type | Automatic |
| Are Batteries Included | No |
| Supported Image Format | MJPEG |
| Water Resistance Level | Not Water Resistant |
| White Balance Settings | Auto |
| Connectivity Technology | Infrared, USB |
| Has Image Stabilization | No |
| Upper Temperature Rating | 85 Degrees Celsius |
| Display Resolution Maximum | HD |
| Effective Still Resolution | 0.92 MP |
| Flash Memory Video Speed Class | V10 |
